Rotating Mitre Stand

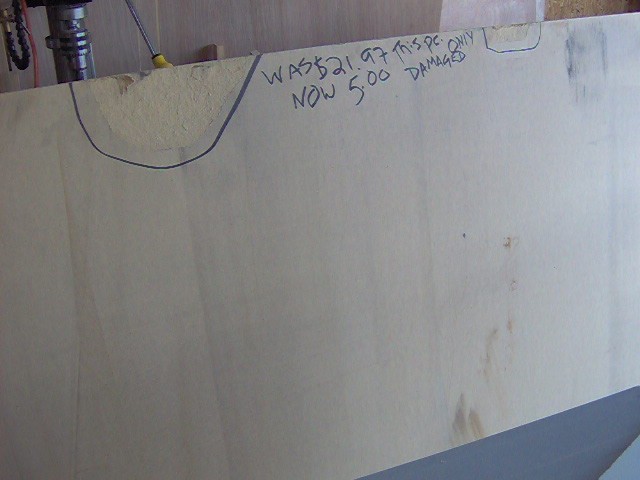

$5.00 MDF Sheet


Rotating Top

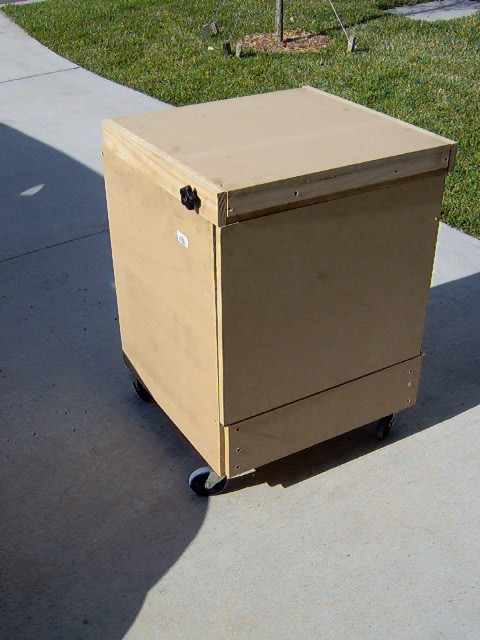

Cabinet

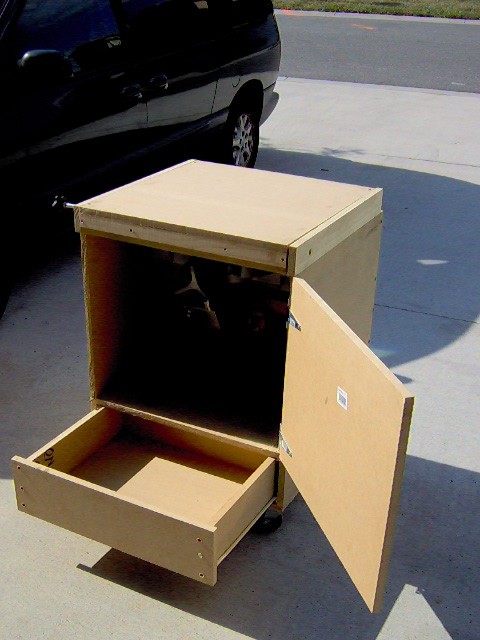

Drawer

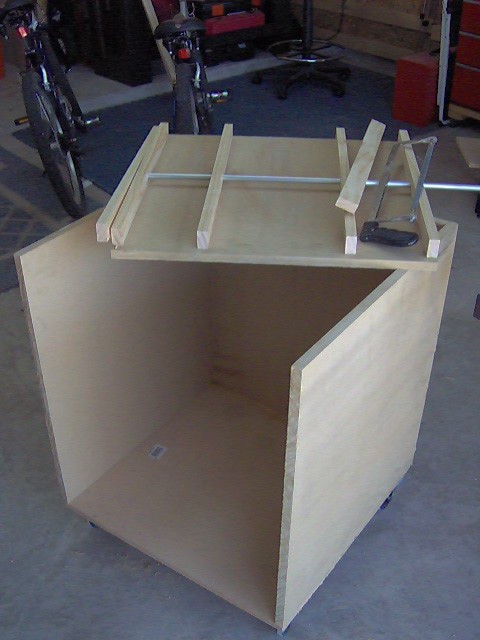

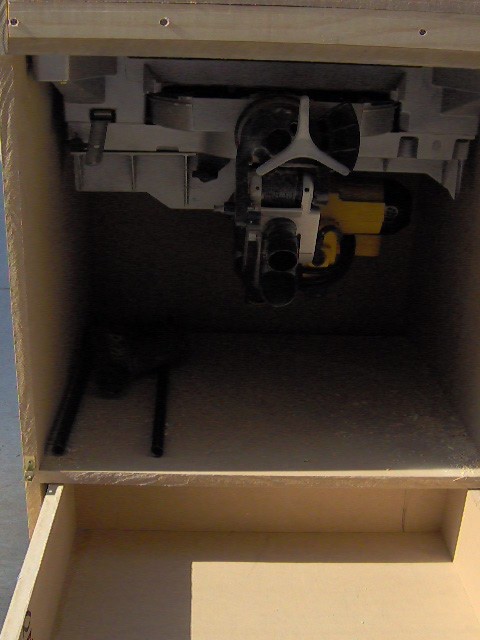

Underside

Mitre Stand Carcass is constructed of 3/4" MDF sheet that was purchased for $5 as a damaged piece. Tom is composed of firring strips sandwiched between MDF. Top rotates on 1/2" aluminum rod.

Handles Handle is composed of 1/2" rod, 1/4" allen screw, and handle. Rod was drilled with 7/32" drillbit (slightly undersized). Allen screw cut it's own threads in soft aluminum.

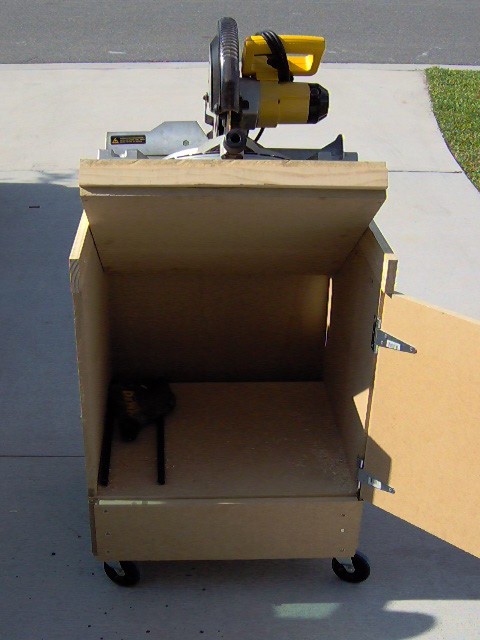

In Rotation

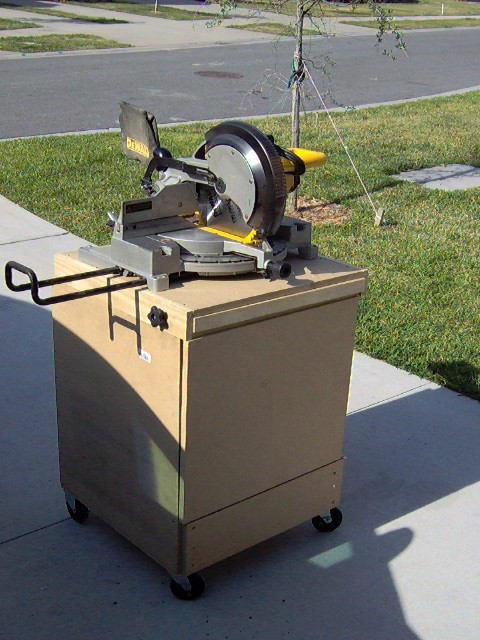

Mitre Up

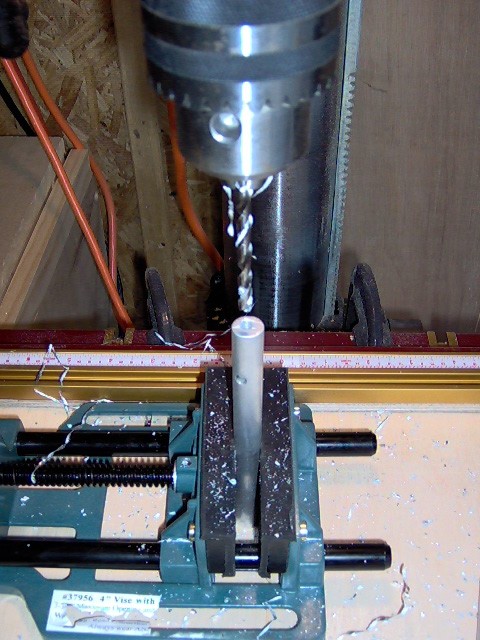

Drilling Rod

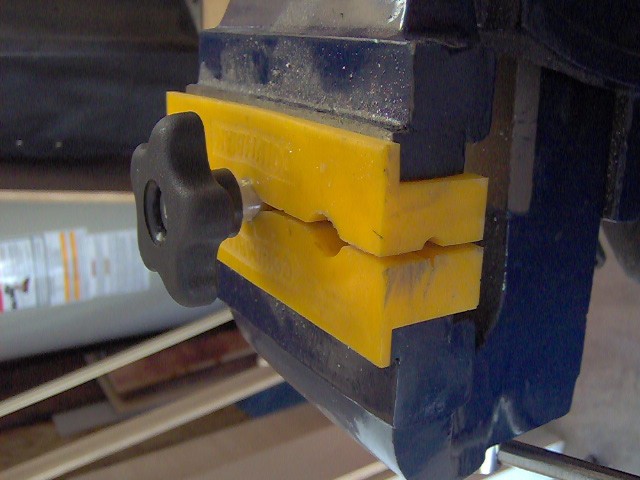

Threading Handle

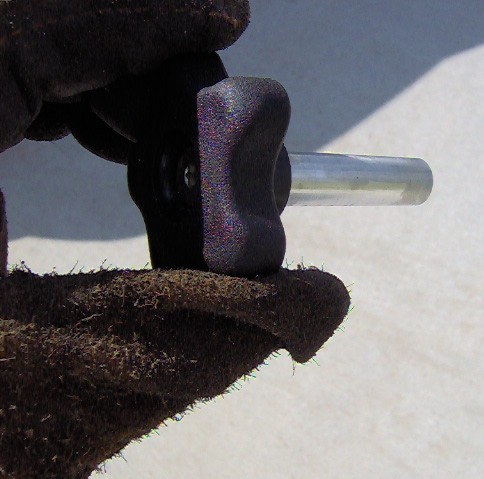

Handle Complete
